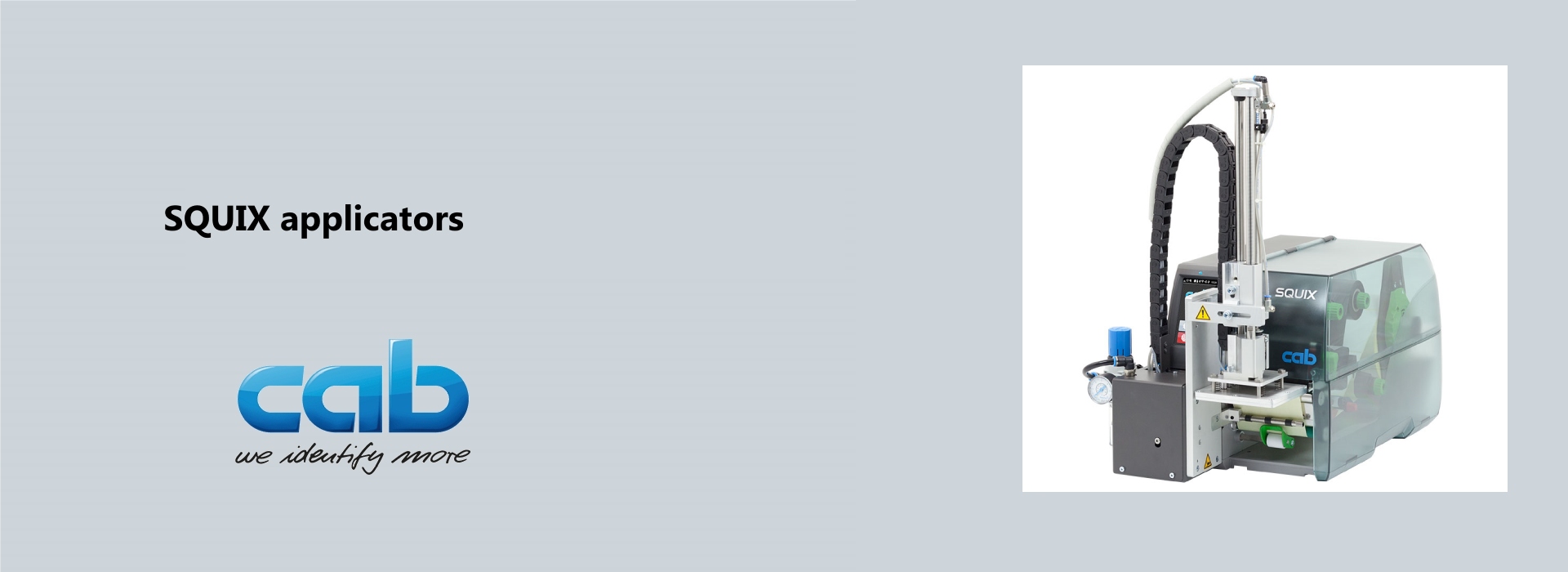

SQUIX applicators
Applicator S1000
Real-time labeling
The applicator S1000 combined with a SQUIX is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. The label is placed on the product with a stroke cylinder.
| Applicator | S1000-220 | S1000-300 | S1000-400 |
|---|---|---|---|
| Cylinder stroke mm | 220 | 300 | 400 |
| Tamp stroke below device mm |
64 | 144 | 244 |
| Compressed air bar | 4.5 | ||
Applicator S3200
The applicator S3200 combined with a SQUIX is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. With the S3200 printed labels are automatically applied on a product. By means of a rotary cylinder the label is positioned 45° to 95° to the horizontal and placed on the product with a short stroke cylinder.
Information on service life, pre-dispensing, compressed air regulation unit, process reliability and supporting air correspond with the applicator S1000.
| Applicator | S3200 |
|---|---|
| Rotary cylinder | 45°- 90° |
| Stroke cylinder up to mm | 30 |
| Immersion depth pad F up to mm | 5 |
| Compressed air bar | 4.5 |
| Cycle time approx.1) | 20 labels/min |
1.Calculated with label height 40 mm, print speed 100 mm/s
Tamp pads or blow pads are manufactured according to the label size.
Tamp pads or blow pads are manufactured according to the label size.
| Tamp pad | Blow pad | |||
|---|---|---|---|---|
| A3200-1100 | M3200-1100 | A3200-2100 | M3200-2100 | |
| Material guide | Left aligned | Centered | Left aligned | Centered |
| Tamp surface W x H min. mm | 72 x 60 | 72 x 60 | ||
| Label width mm | 20-116 | 20-116 | ||
| Label height mm | 5-80 | 10-80 | ||
| Product surface | Flat | |||
| Product during labeling | Not moving | Not moving or in motion | ||
Dispensing module S5104
For labeling on packaging on a conveyor belt. The product sensor identifies the labeling position. Dispensing is started and at the same time the next label is printed. Conveyor belt speed and print speed have to be synchronized. A reflective sensor monitors the positioning.
| Demand module | S5104 | S5106 |
|---|---|---|
| To be used with | SQUIX 4.3, SQUIX 4 | SQUIX 6.3 |
| Material guide | Left-aligned | |
| Label width mm | 25-116 | 50-176 |
| Label height mm | 25-210 | |
| Distance from print line to peel-off plate mm | 336-518 | |
| Product surface | Flat | |
| Product height | Fixed | |
| Product during labeling | In motion, speed synchronized with the printer | |
| Cycle time approx.1) | 60 labels/min | |
