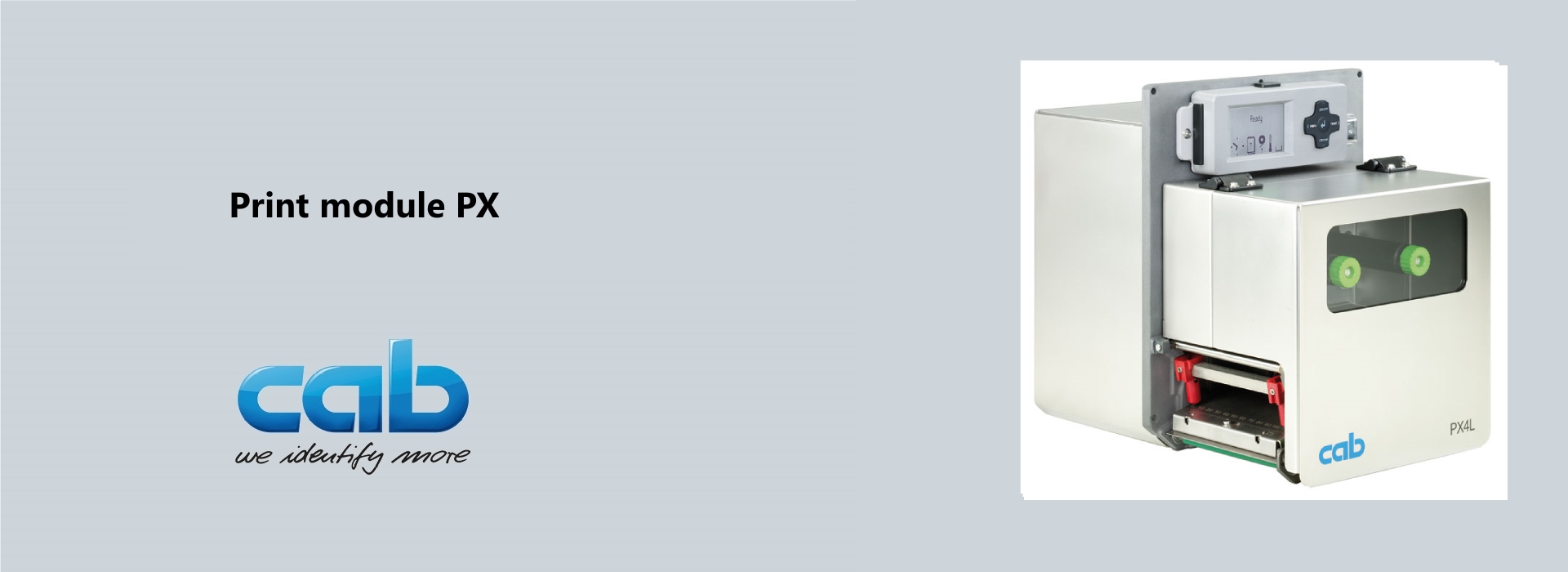

Print module PX

For complex labeling applications in any mounting orientation

Please note: Print module PX will be discontinued at the end of 2019 and be replaced by PX Q. cab will further supply PX spare parts until 2025.

PX LogoPrint and apply with the PX module in an industrial demanding envioment around the clock.

Our goals are:

Perfect function, high reliability, easy to handle operation and less maintenance downtime. The PX print module is designed especially for the fully automatic print and apply operation in the industrial use. It can be integrated in each orientation and used for complex labeling applications.

A solid cast aluminum design is base for the assembly of all components of the printing mechanics. A food safe coating and stainless steel covers make the PX print moduleperfect with outstanding features. It is bolt compatible with competitive print engines.

The Universal

The industrial engine for the precise printing.


 1.1 Print Module PX4 PX4.3*
Print resolution dpi 203 300 600 203 300
Print width up to mm 104 105.6 105.6 104 108.4
Print speed  up to mm/s 300 250 100 250 250


The Wide

Focused on Odette and UCC labels.


 1.2 Print Module PX6
Print resolution dpi 203 300
Print width up to mm 168 16.,6
Print speed  up to mm/s 200 200


Print Module PX "L"

left hand version

Print Module PX "R"

right hand version

Label peeling direction

All PX print modules are available in right and left hand version.
