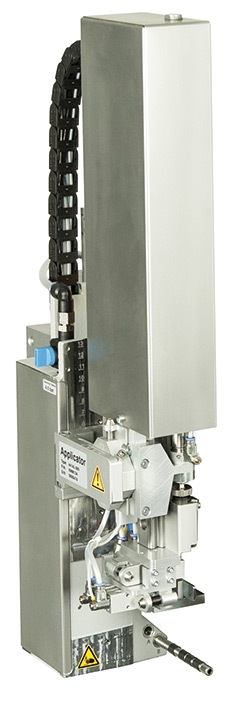

Stroke applicator 4414
for very precise real-time labeling of very small to mid-sized labels
Adjustability in x and y directions provides exact positioning on the product. Labeling is possible from all sides.
The pad is positioned in front of the peel-off plate. The label is held during printing. Two short stroke cylinders move the pad horizontally to the labeling position. The stroke cylinder applies the label on the product. The length of the stroke cylinder defines the maximum product distance to the peel-off plate.
Transfer modules for stroke applicator 4414
Tamp pad
Labels are precisely tamped on plain surfaces, even recessed.
Tamp pad with damping layer
With hard surfaces, the layer contributes to noise damping. The use gives also advantage with rough structures or minor unevenness.
Tamp pad with label stop
In case of small labels, the stop provides precise positioning on the product.
