FX1200 DIGITAL FINISHING SYSTEM

FX1200 DIGITAL FINISHING SYSTEM

Product Code  :  74311

Availability  :   In Stock

The FX1200 Digital Finishing System is an âall-in-oneâ off-line solution that produces rolls of finished labels produced by a variety of narrow-web output devices including the CX1200 Digital Color Label Press. A perfect solution for converters and manufacturers



FX1200 Digital Finishing System

Digital Label Finishing Has Never Been This Fast, Easy and Affordable!

fx1200

Until now, digital label finishing has been expensive. Complicated. And not particularly well-refined. But no longer.

Primera’s FX1200 Digital Finishing System is here.









This innovative new machine is ready to meet the demands of converters and manufacturers who need reliable, professional-grade finishing equipment to complete their digital label production. FX1200 is an “all-in-one” off-line solution that produces rolls of finished labels produced by a variety of narrow-web output devices.

With FX1200, you’ll be able to quickly and easily perform all of these label finishing steps in a single, integrated and automated process:

Touch Screen Controls

All set-up and operation is controlled through an integrated touch screen PC. Most jobs take only a few minutes to set up and start running. You can easily adjust job parameters “on-the-fly” due to the significant built-in processing power and on-board memory – a unique feature in this category of digital finishing systems. The wide-screen color LCD display is easily visible in many different lighting conditions.

Cut Any Size or Shape without Dies

Instead of hard-tooled or flexible steel dies, FX1200 utilizes digitally-controlled tungsten carbide steel knife blades. With FX1200 you’ll never have to buy a die or wait for it to be made and delivered. Your turnarounds will be faster and the time and cost savings are significant.

Finishing speeds of up to 20 FPM (6.1 meters per minute) are accomplished with Primera’s exclusive QuadraCut™ technology (patent pending). QuadraCut uses up to four knife blades at a time across the web. This feature dramatically increases throughput compared to systems that have just a single blade. You can cut virtually any size or shape from various pressure-sensitive substrates, including matte and gloss paper, polyester, vinyl, polypropylene, BOPP and more.

Precise re-registration to pre-printed images is accomplished with dual two-zone timing mark sensors.

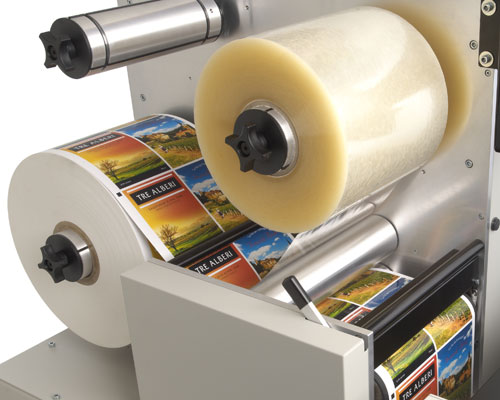

1. Lamination




A Complete Digital Solution

FX1200 is the perfect companion to a variety of narrow-web digital output devices, including Primera’s best-selling CX1200 Digital Color Label Press (color laser technology) and LX900 Color Label Printer (inkjet technology). With Primera’s digital printing and finishing equipment, you get a complete digital label printing and finishing solution from a single vendor at a new, breakthrough price.



2.Digital Die-Cutting









3. Removal Of Waste Matrix









4.Slitting









5.Rewinding





FX1200 Digital Finishing System Specifications



Input roll max. diameter:

12” (305mm)
Output roll max. diameter: 12” (305mm)
Minimum web width: 4.5" (114.3mm)
Maximum web width: 8.5” (216mm)
Maximum die cutting width: 8” (203mm)
Minimum Slitting Width: 1" (25.4mm)
Minimum label length: 0.25” (6.35mm)
Maximum label length: 24” (610mm)
Throughput speed: Up to 4” (102 mm) per second or 20 FPM (6.1m per minute)
Controls: 15.6” (diagonal measure) LCD touch screen, 16:9 wide panel, 1366 x 768 pixels; emergency stop switch
Number of cutting knives: 1 to 4
Number of slitting blades: 1 to 7
Cutting technology: Tungsten carbide pivoting knife(s)
Optical sensing: Dual two-zone
Cut speed (max. diagonal): Up to 113” (287cm) per second when using four knife blades
Processor: Intel® Atom™ 330 1.6 GHz
Memory: 1 GB DDR2
On-board storage: 160GB SATA 2.5” HD
Data interfaces: USB 2.0, 10/100/Gigabit Ethernet, Wireless 802.11 b/g/n, USB memory stick
Dimensions: 78”W x 30”D x 56”H
(198cmW x 76.2cmD x 142cmH)
Weight (estimated): 498 lbs. (226 kg)
Power requirements: 100-240VAC, 300 watts
Agency certifications: UL, UL-C, CE, FCC Class A
Options: Lamination Liner Waste Mandrel
Extended Warranty
Cleaning Brush Kit with Vacuum Hose Attachment
