SQUIX 4 M

Product Code  :

Availability  :   In Stock

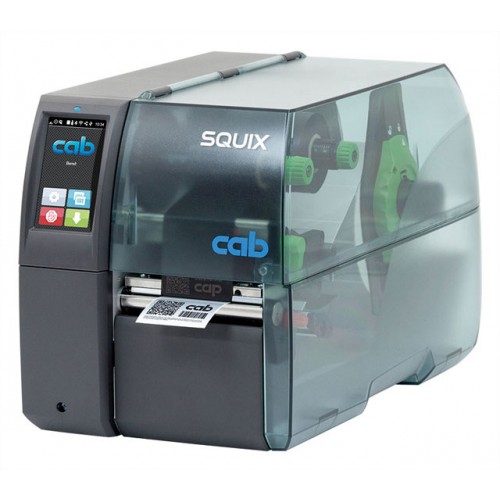

The SQUIX 4 M label printers are the further development of A4+M. The professional SQUIX label printers fit with a wide range of industrial applications. They have been developed with focus on easy and convenient operation and high reliability.



The SQUIX 4 M label printers are the further development of A4+M. The professional SQUIX label printers fit with a wide range of industrial applications. They have been developed with focus on easy and convenient operation and high reliability.

The print mechanics and the chassis are made of high-quality materials and perfectly match in terms of shape and function. A large number of peripherals and software enable customer-specific solutions.

Whether they are operated in stand-alone mode, in a PC application or within a network - the rugged SQUIX printers are always up to the mark. The high-speed processor ensures fast job processing and immediately provides the required label.

Label printers SQUIX M series

CenteredMaterial guide
centered



SQUIX 4M, Basic version

vergrößern








Basic version

SQUIX 4 MP, Peel-off version

vergrößern








Peel-off version P

The accurate and versatile one

for printing on all materials that are wound on rolls or reels or fanfold - especially very small labels or slim continuous materials such as pressed shrink tubes.

As regards the label width, no adjustment of the plungers is needed.

Width-adapted print rollers are provided for slim materials.

1.4 Label printer

SQUIX 4.3 M

SQUIX 4 M

Printable resolution dpi

203

300

300

600

Print speed up to mm/s

250

250

300

150

Print width up to mm

104

108.4

105.7

105.7



  1.4
Label printer SQUIX 4.3 M SQUIX 4 M
Material feed centered
Printing method: Thermal transfer Typical Typical Typical Typical
Printing method: Thermal direct Typical Typical Possible -
Printable resolution dpi 203 300 300 600
Print speed up to mm/s 250 250 300 150
Print width up to mm 104 108.4 105.7 105.7
Print start: Distance to locating edge centered on material
Material
Roll, fanfold, reel: Paper, cardboard, PET, PE, PP, PI, PVC, acrylate, Tyvec Typical
Roll, fanfold, reel: Smart Labels Typical
Roll, fanfold, reel: Ready-for-use shrink tubes Typical
Roll, fanfold, reel: Pressed continuous shrink tubes Typical
Roll, fanfold, reel: Textile tapes Possible
Labels1) Width mm 4 - 110
Labels     Height without label backfeed2) from mm 3
Labels     Height with label backfeed2) from mm 4
Labels     Height with label backfeed when dispensing from mm 6
Labels Maximum height mm 2,000
Labels     Thickness mm 0.03 - 0.60
Carrier material Width mm 9  - 114
Carrier material Thickness mm 0.03 - 0.16
Continuous material Width mm 9  - 114
Continuous material Thickness mm 0.05 - 0.50
Continuous material Weight (cardboard) up to g/m2 300
Shrink tubes Width ready-for-use up to mm 114
Shrink tubes Width continuous mm 4 - 85
Shrink tubes Thickness up to mm 1.1
Roll, reel: Outside diameter with core diameter up to mm 205 / 38,1 - 76
180 / 100
Winding outside or inside
Ribbon3)
Ink side outside or inside
Roll diameter up to mm 80
Core diameter mm 25.4
Variable length up to m 450
Width mm 25-114
Internal rewinder in peel-off version
Outside diameter up to mm 142
Core diameter mm 38.1 - 40
Winding outside
Printer sizes and weights
Width x Height x Depth mm 252 x 288 x 460
Weight kg 10
Label sensor with position indication
Gap sensor for labels, punch marks or print marks in transparent materials and end of material
Reflective sensor from below or top for print marks in not transparent materials and end of material
Distance sensor from center to locating edge centered mm 0-55
Height of material gap mm 2
Electronics
Processor 32 bit clock rate 800
Main storage (RAM) 256
Data storage (IFFS) MB 50
Slot for SD memory card (SDHC, SDXC) up to GB 512

Differences compared to a left-aligned material guide:

1 Ribbon holder
Easy insertion of the ribbons is enabled with the three-part tightening axles. A preprinted ruler simplifies the adjustment.

2 Roll holder
When setting the margin stop, the material roll is automatically centered. If rolls with 100 mm core diameter are processed, an adapter is recommended.

3 Plungers
Both plungers are fixed for all material widths. No print head settings or adjustments are necessary.

4 Material guide
The material guide just in front of the print roller provides accurate imprint. The material width is adjusted with a spindle.

DR4-M25     DR4-M25

DR4-M50     DR4-M50

DR4-M80     DR4-M80

Slim print rollers
To achieve accurate imprint with slim materials and ribbons slim print rollers are needed. These prevent from print roller wear, print head contamination and errors during material feed.

Coating: synthetic rubber



Operation panel

Intuitive and easy operation with self-explanatory symbols to configure the device setups

Operation panel1 LED signal: Power ON

2 Status bar: Data reception, Record data stream, Ribbon warning, SD memory card/USB memory stick plugged in, Bluetooth, WLAN, Ethernet, USB Slave, Time

3 Printer status: Ready, Pause, Number of printed labels per print job, Label in peel-off position, Awaiting external start signal

4 Periphery  Periphery buttons:
Cutter/perforation cutter: direct cutting
External rewinder: winding outside or inside
Tear-off or peel-off mode: print the next label
Applicator: label application

5  Operation

Jump  Jump to menu

Reprint  Reprint last label

Interrupt   Interrupt and continue print job

Stop  Stop and delete all print jobs

Label feed  Label feed

6 USB slot for the Service Key or a memory stick, to load data in the IFFS storage

7 USB-WLAN-Stick 2.4 GHz 802.11b/g/n included as an extra item in the scope of delivery;
In hotspot mode it is possible to directly connect a mobile device with the printer via WLAN.


Setup optionsvergrößern
Setup options
Printing parametersvergrößern
Printing parameters
Print position Yvergrößern
Print position Y
Fast setup with a slider, fine setup with ± keys
Print speed selectionvergrößern
Print speed selection
via scroll function
Video tutorialsvergrößern
Video tutorials
Scan QR code with a mobile device and watch the explanatory video


Print heads

Print heads

All print heads are freely interchangeable at equal width. They are automatically detected and calibrated by the CPU.
Major data such as running performance, maximum operating temperature and heat energy are directly stored in the print head. The data can be read at the plant.

Print heads for SQUIX 2, SQUIX 4 - 300, 600 dpi
for a sharp-edge print image
for type plates with small fonts, graphics and material marking with high energy needs

Print heads for SQUIX 4.3, SQUIX 6.3 - 203, 300 dpi
durable, for rough surroundings and thermal direct printing
