A future-proof investment

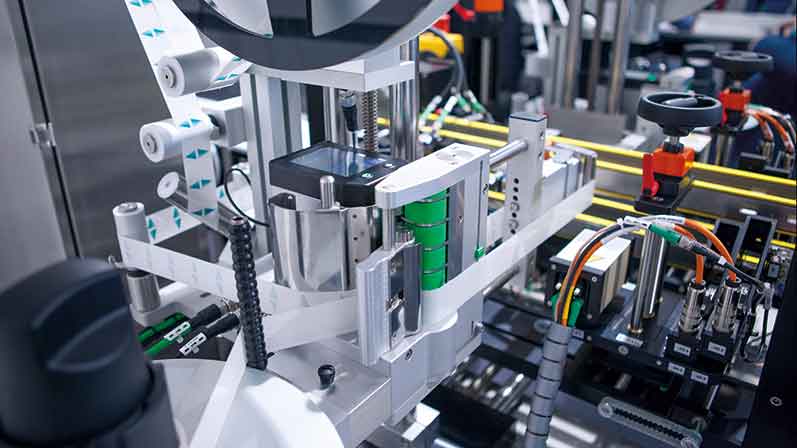

In the matter of mechanics, the IXOR can be ideally integrated in fully automatic labeling machines with the help of a modular construction kit. It can also be assembled to the conveyor belt of a production line by means of accessorial stands. Pre-printed labels are applied on products or packaging fast and precisely.

The device has the control unit integrated, a separate control cabinet is not required. The base unit can be selected from four structural widths in right-hand and left-hand designs. Unwinders pick up label rolls with 410 mm maximum outside diameter.

Zero downtime is possible through a redundant system.

The labeling head is a key component for smart production. The LAN and WLAN interfaces enable the device to be connected to the superior control units of machines.

MQTT ensures cross-platform and future-proof communication, while Modbus, OPC UA and Ethernet/IP are available on demand. Protocols are kept simple and lean, machine and plant data can be submitted event-driven. If data values change, updates are possible in real time.

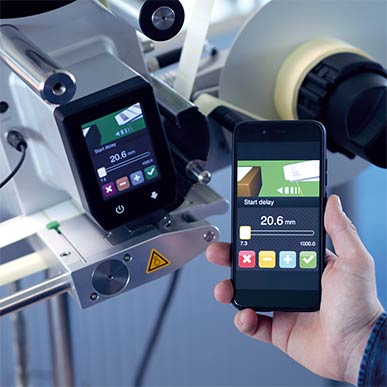

Remote IXOR operation with a smartphone, a tablet or a PC is possible at any time. The intuitive web interface allows backup, restore and updates.

A future-proof investment

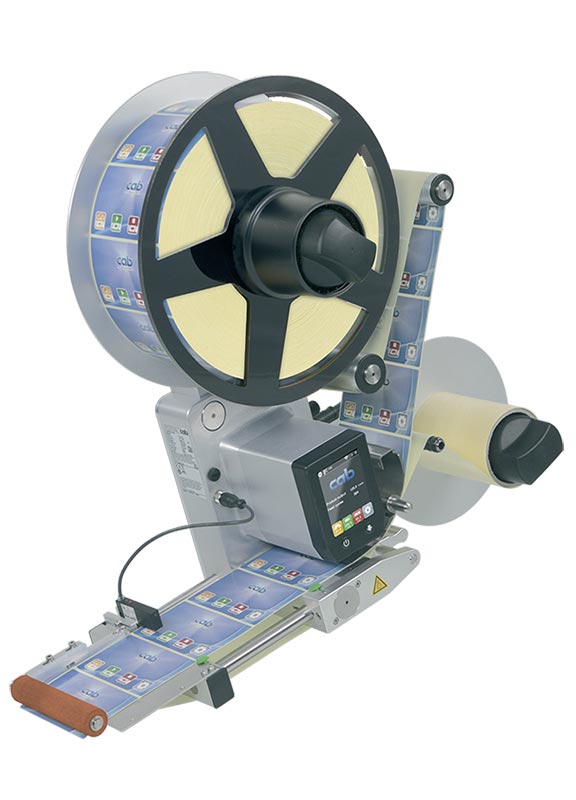

Construction L - left-hand
Assembly V - vertical

Pictured:
1.1 Labeling head 124 L
2.1 Unwinder D310 V 124 L
Outside diameter D: 310 mm

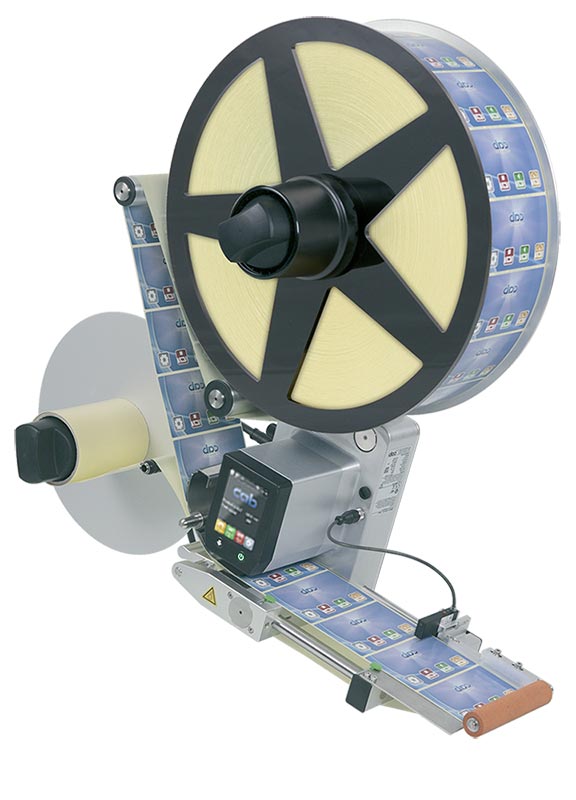

Construction R - right-hand
Assembly V - vertical

Pictured:
1.1 Labeling head 124 R
2.2 Unwinder D410 V 124 R
Outside diameter D: 410 mm

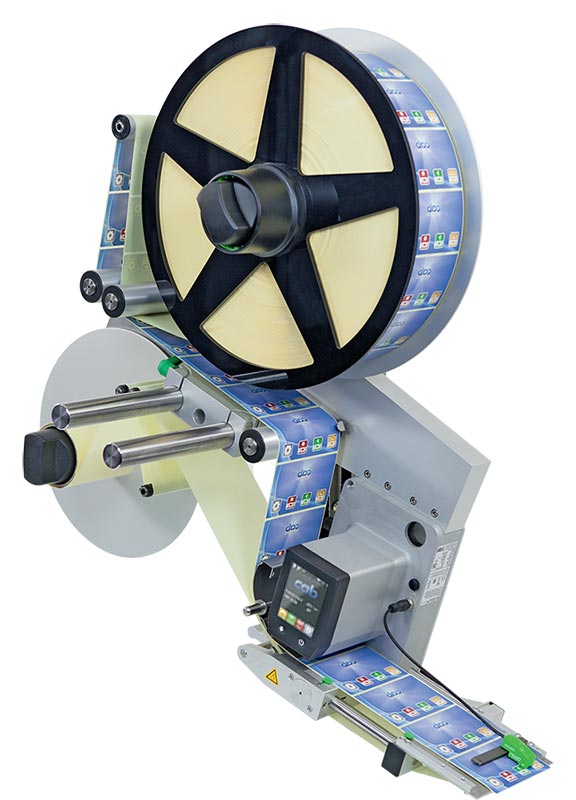

Construction R - right-hand
Assembly V - vertical

Pictured:
1.1 Labeling head 124 R
2.1 Unwinder D410 V 124 R motor-driven
Outside diameter D: 410 mm

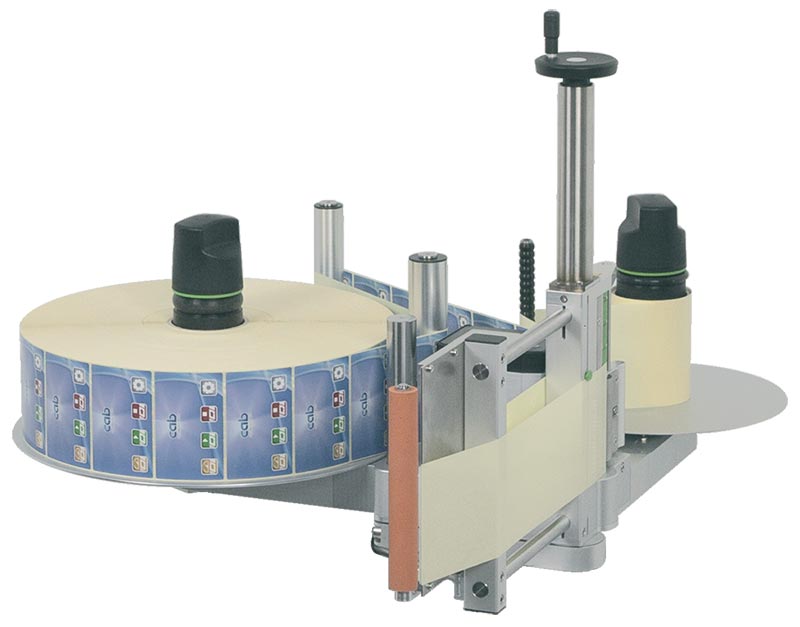

Construction L - left-hand
Assembly H - horizontal

Pictured:
1.2 Labeling head 186 L
2.2 Unwinder D410H 186 L
Outside diameter D: 410 mm
