Every label size can be dispensed easily using the HS and VS dispenser. The labels can be stamped or cut without any space inbetween.

You can use any outside shape whether cornered or round. Transparent material can also be dispensed.

Two dispensing directions

Two versions are available so as to ensure that the labels can be removed properly for every use.

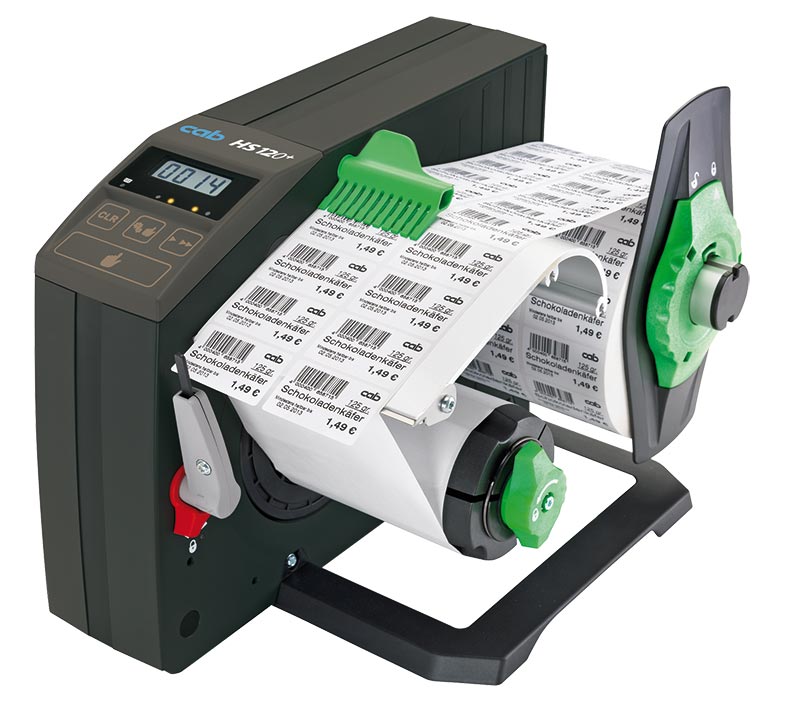

HS Horizontal dispensing direction

label rolls with bottom leading print imagefor label rolls with bottom leading print image

Peel off the label upwards from its bottom edge and stick it to the product.

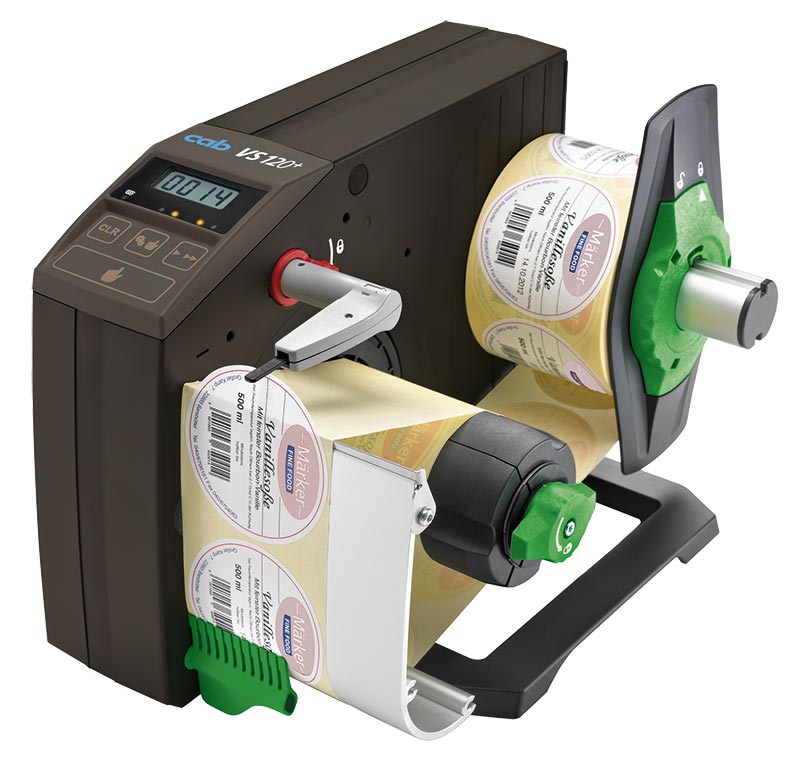

VS Vertical dispensing direction

for label rolls with top leading
print image

Peel off the label forward from its upper edge and stick it to the product from the shortest distance possible. Particularly suitable for larger labels as the adhesive side is already directed to the product.

Two operation panels

Basic version

Label feed

• automatically after removal of the label

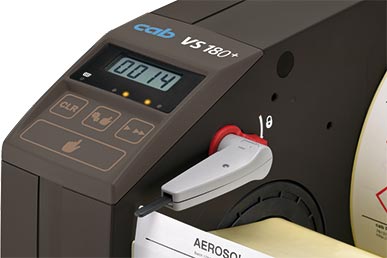

With operation panel

Label counter from 0 - 9,999
Label feed

• automatically after removal of the label
• slow / fast
• after pressing the push button or
• automatically after removal of the label or
• by an external signal on the rear side of device

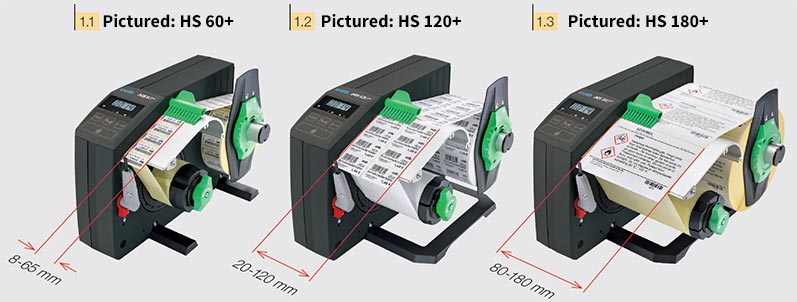

Three widths of material for HS and VS
