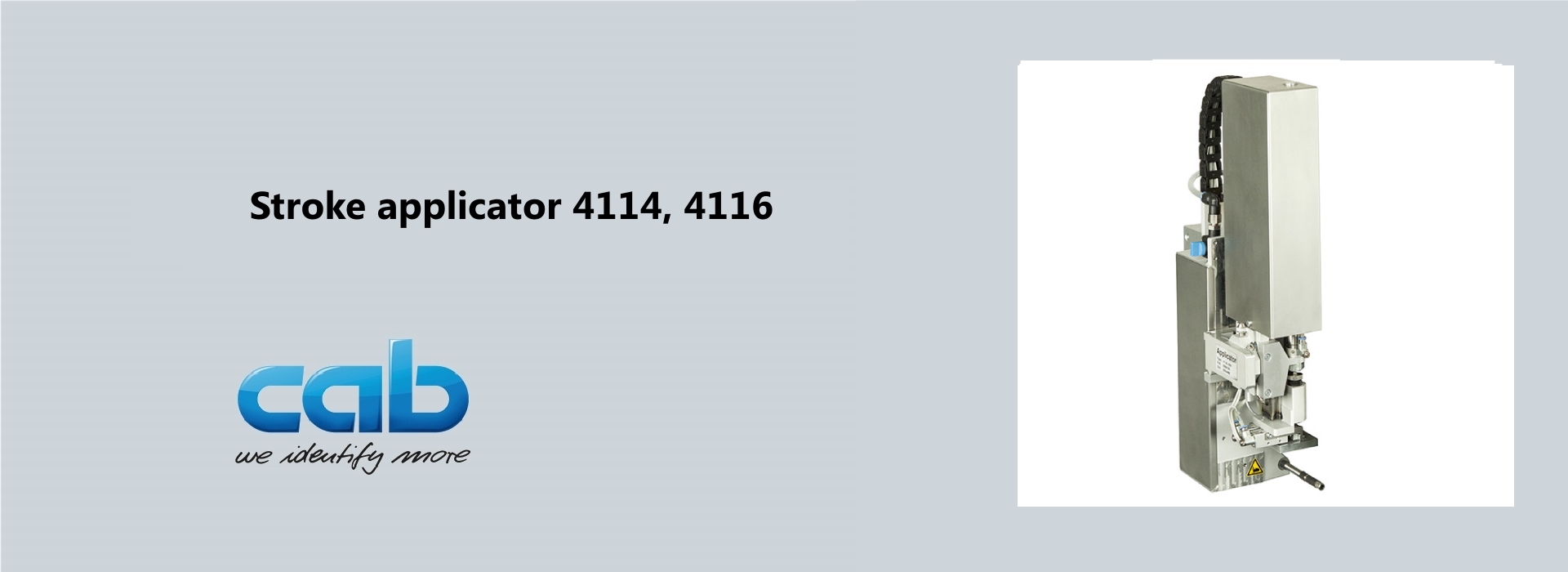

Stroke applicator 4114, 4116
for precise real-time labeling of very small to mid-sized labels where installation is difficult
Labeling is possible from all sides.
The pad is positioned in front of the peel-off plate. The label is held during printing. A short stroke cylinder moves the pad horizontally to the labeling position. The stroke cylinder applies the label on the product. The length of the stroke cylinder defines the maximum product distance to the peel-off plate.
for precise real-time labeling of very small to mid-sized labels where installation is difficult
Tamp padTamp pad
Labels are precisely tamped on plain surfaces, even recessed.
Tamp pad with damping pad Tamp pad with damping layer
With hard surfaces, the layer contributes to noise damping. The use gives also advantage with rough structures or minor unevenness.
Tamp pad with label stop
In case of small labels, the stop provides precise positioning on the product.
Blow padBlow pad
for pressure sensitive surfaces or when products are in motion. Air jet blows the labels onto the product. 5 to 10 mm distance to the product surface are set with a stop on the stroke cylinder.
Form pad
Labels are applied precisely to cylindric objects, oblique or curved surfaces. Curved form pads prevent from bubbling on very smooth and flat surfaces. With cylindric objects, 200° maximum label wrapping is possible.
