Front side applicator 3014, 3016
For real-time labeling on packaging in motion

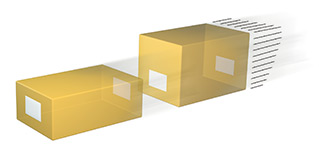

The labels are preferably applied to the front or back. Labeling from top or from the side is possible.

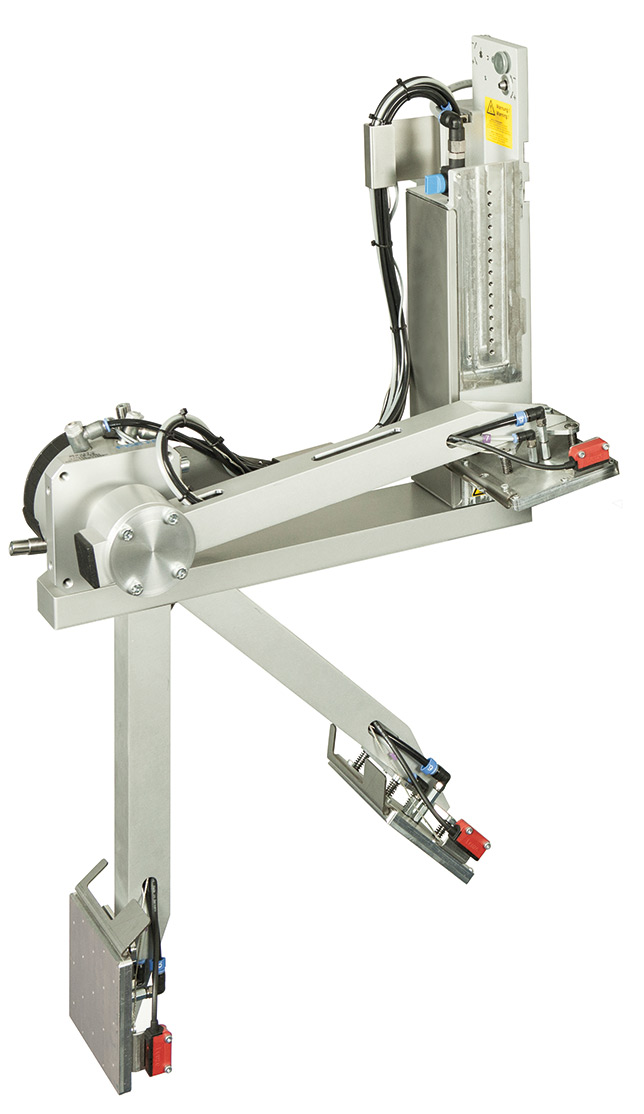

The pad is positioned in front of the peel-off plate. The label is held during printing. The rotary cylinder applies the label on the packaging. A sensor detects the packaging and, when labeling has finished, moves back the pivot arm and pad to their initial position.
1 Pivot arm length
2 Pivot angle 0 - 90°
Transfer modules for front side applicator 3014, 3016
Tamp pad
Labels are precisely tamped on plain surfaces, even recessed.
Tamp pad spring-mounted
The spring-mounted suction plate allows labeling on inclined surfaces up to 15°. Deviation in height in the area of the label may not exceed 10 mm.
Blow pad
With 5 to 10 mm distance to the product surface, air jet blows the labels onto the product.
