Applicator S1000

vergrößern

Real-time labeling

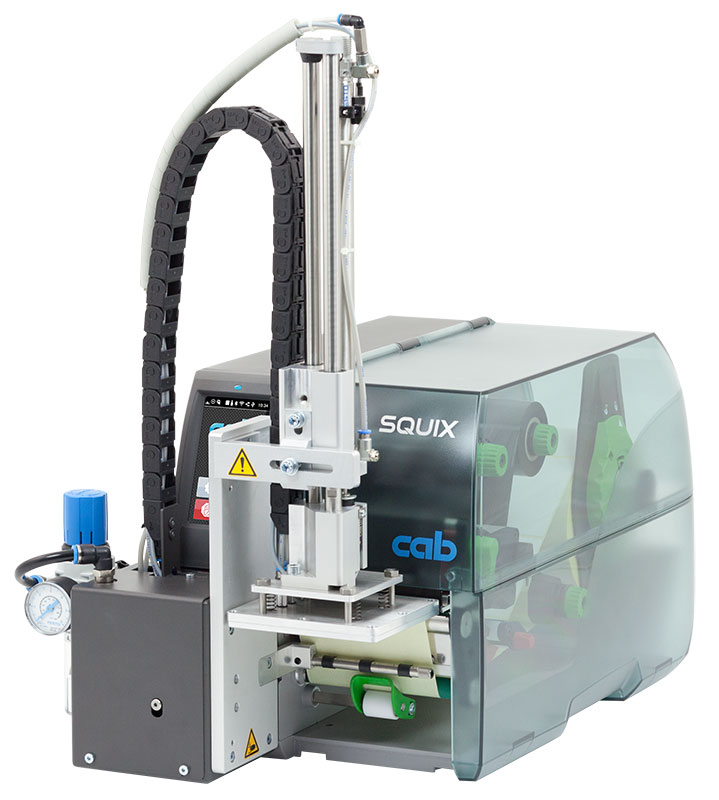

The applicator S1000 combined with a SQUIX is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. The label is placed on the product with a stroke cylinder.

Applicator	S1000-220	S1000-300	S1000-400
Cylinder stroke mm	220	300	400
Tamp stroke below device mm	64	144	244
Compressed air bar	4.5

Applicator S3200

Real-time labeling
The applicator S3200 combined with a SQUIX is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. With the S3200 printed labels are automatically applied on a product. By means of a rotary cylinder the label is positioned 45° to 95° to the horizontal and placed on the product with a short stroke cylinder.

vergrößern

Information on service life, pre-dispensing, compressed air regulation unit, process reliability and supporting air correspond with the applicator S1000.

Applicator	S3200
Rotary cylinder	45°- 90°
Stroke cylinder up to mm	30
Compressed air bar	4.5

Tamp pads or blow pads are manufactured according to the label size.

Dispensing module S5104

For labeling on packaging on a conveyor belt. The product sensor identifies the labeling position. Dispensing is started and at the same time the next label is printed. Conveyor belt speed and print speed have to be synchronized. A reflective sensor monitors the positioning.

vergrößern

Demand module	S5104	S5106
To be used with	SQUIX 4.3, SQUIX 4	SQUIX 6.3
Material guide	Left-aligned
Label width mm	25-116	50-176
Label height mm	25-200
Distance from print line to peel-off plate mm	336-518
Product surface	Flat
Product height	Fixed
Product during labeling	In motion, speed synchronized with the printer
Cycle time approx.1)	60 labels/min

1. Calculated with label height 100 mm, print speed 100 mm/s
