Primera's Signature Cassette Printer can significantly increase the efficiency of your lab while helping to reduce the risk of misidentification of specimens. You can print text, graphics and logos along with linear and 2D bar codes directly onto the face of the cassettes, making your workflow more efficient while increasing patient safety.

Primera's Signature Cassette Printer can significantly increase the efficiency of your lab while helping to reduce the risk of misidentification of specimens. You can print text, graphics and logos along with linear and 2D bar codes directly onto the face of the cassettes, making your workflow more efficient while increasing patient safety.

2 operating methods of the Signature cassette printer are possible:

Labs can first purchase a manual printer and later upgrade that printer with robotics to make it a completely automated system. The small size of SCP-M allows labs to place a direct-to-cassette printer at each grossing station.

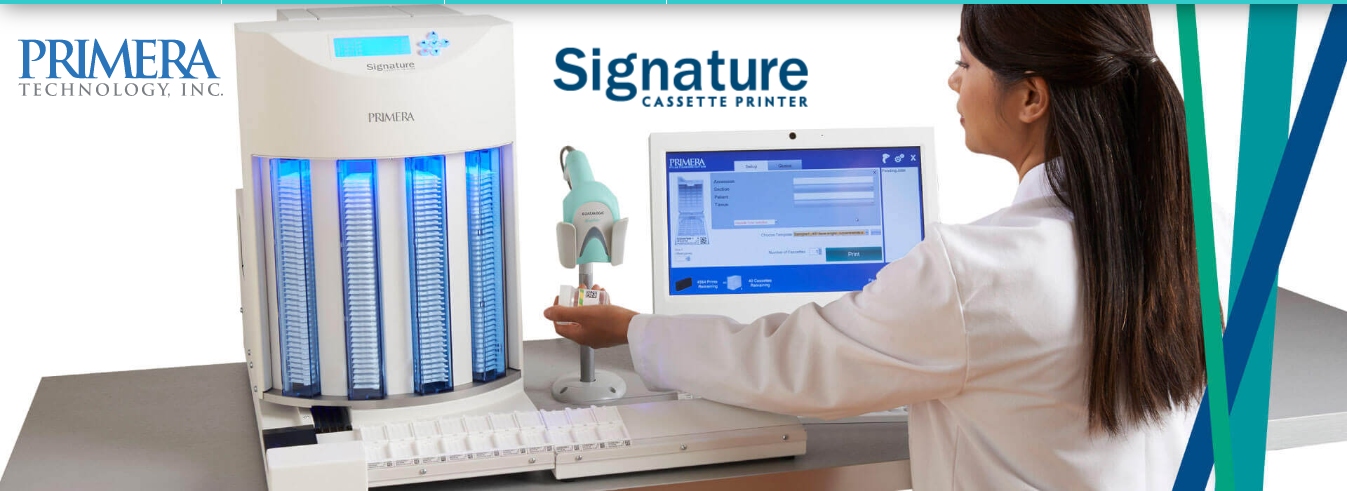

Signature® Cassette Printer
Manual Feed (SCP-M)

Manual Version

One cassette is manually loaded at a time. Print speed is extremely fast at about 6 seconds per cassette.

Key Features and Benefits:

• On-demand, full-colour or black printing text, graphics, linear and 2D Barcodes
• Reduce inventory hassle of various coloured cassettes by using just a white cassette and print with color
• Print speeds at up to 9 cassettes per minute
• Prints on standard cassettes with 35° to 45° angles with either lid on or lid off, no adjustments needed
• Virtually silent while printing
• No smell or smoke and no venting needed
• Chemical and UV resistant print to withstand processes, commonly used in laboratories. Even after several years cassettes can be reliably identified
• Free PTLab Software – template-driven software for your individual design and data workflow and configurable data stream connection to LIS systems
• USB Interface for easy direct connection to Windows based PC´s and Tablets
• Environment friendly lowest energy consumption in the market and recyclable non hazard materials
• Two years warranty (after product registration within 6 months)

Signature® Cassette Printer
Robotic Feed (SCP-R)

Robotic Version

Up to 160 cassettes are automatically loaded by the robotoc. Print speed is extremely fast at about 8 seconds per cassette.

Key Features and Benefits:

• Modular Design, the Signature Cassette printer can be installed on in seconds
• 160 cassettes capacity for on-demand or batch mode printing
• 4 transparent cassette hoppers with 40 cassettes capacity each
• Feeds standard cassettes with 35° to 45° angles with either lid on or lid off, no adjustments needed
• Output capacity: 7 cassettes expandable by ten up to 47 cassettes with external transporter carriers which also can be used to carry the job to the processing table
• Speed up to 8 cassettes per minute
• Extremly quite operation
• LCD Display for status messages and fill capacity levels with 4 cross button user interface
• Environment friendly lowest energy consumption in the market and recyclable non hazard materials
• Two years warranty (after product registration within 6 months)

Easy to Use

Signature is designed for efficient, hands-free operation. Taped cassettes are easily loaded into individual hoppers. The level of cassettes remaining is easily viewed through the front of the hopper's transparent blue LED backlit case and is displayed on the LCD screen.

Optional PTLab™ Software

PTLab Software was designed by Primera specifically for use with the Signature Cassette Printer. It can be installed on any Windows 78.110 PC, including Primera's optional all-in-one touch-screen PC. With PTLab, you'll be up and running and printing full-colour cassettes in just minutes.

Printing only the cassettes you need, when and where you need them, helps avoid potentially serious patient safety errors.

Add Several Configurations

Printers are available for 3rd party integration as well as in complete, stand-alone systems which include printer, software, scanner, keyboard, mouse and mini-PC.
